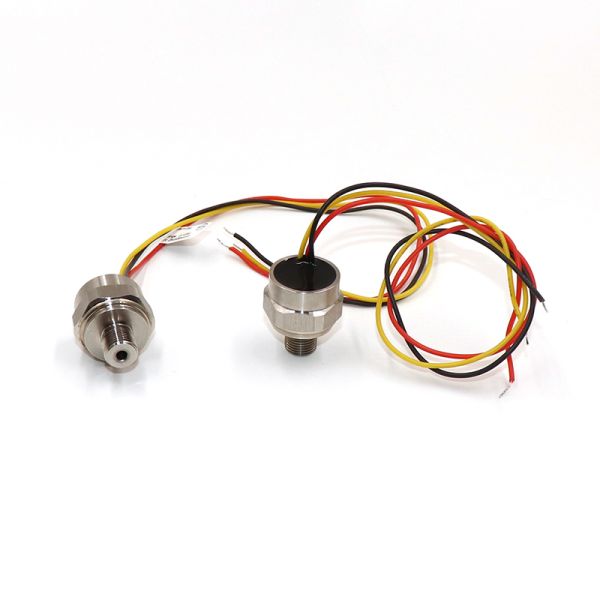

WNK Low Cost Pressure Sensor for Beer Coffee Machine
The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.
|
Applicable media
|
Liquid, Gas
|
|
Pressure Range
|
5bar,10bar,20bar,40bar
|
|
Pressure measurment
|
Gauge Pressure,Absolute pressure
|
|
Output
|
0.5~4.5V, I2C
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
1%F.S.(Typical)
|
|
Power supply
|
5VDC
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
Power(electrical) connect
|
Customization Connector, Cable outlet
|
|
Mechanical Connection
|
M6*1
|
|
Housing Material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
Protection
|
IP68
|
AQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
If you have any questions, please feel free to contact me
