4-20ma 0.5-4.5V Water Level Sensor Submersible For River Sewage

Brand Name : WNK

Model Number : WNK8010-T

Certification : CE/ROHS

Place of Origin : Anhui, China

MOQ : 1pcs

Price : $55.00 - $70.00/Pieces

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 Piece/Pieces per Week Water Tank Level Sensor

Delivery Time : 5-8 work days

Packaging Details : Each set into one individual carton, packed with foam protection

Grade : Industrial

Warranty : 1 year

Customized support : OEM, ODM

Pressure range : 0-200 metres

Accuracy : 0.2%FS, 0.5%FS

Output signal : 4-20mA, 0-5V, 0-10V

Application : liquid, water

Pressure type : Guage Pressure

Power supply : 12~36VDC

Working temperature : -40~85 ℃

Process connection : G1/2, Customization

Compensation temperature : -20~70℃

Keywords : Hydrostatic Level Sensor/ Water Tank Level Sensor

Port : Shanghai, Ningbo, Other ports in China

Contact Now

4-20ma 0.5-4.5V Water Level Sensor /Submersible Level Transmitter For River Sewage
WNK 4-20ma i2C Submersible Level Transmitter

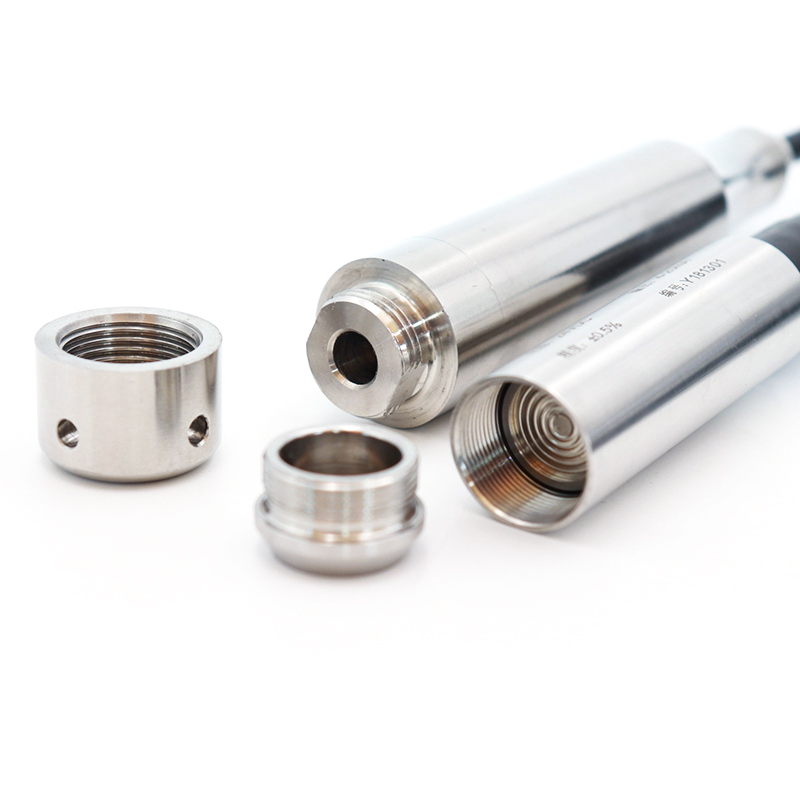

WNK 8010 throw-in type level transmitter (also called static pressure type level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel (or PTFE) housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly. The product adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement liquid level is not affected by the change of external atmospheric pressure, the measurement is accurate with long term stability and excellent sealing and anti-corrosion performance . It can be put directly into water, oil and other liquids (including corrosive liquids) for a long time. The outer casing and cable of PTFE material can measure a variety of highly corrosive liquids.

4-20ma 0.5-4.5V Water Level Sensor Submersible For River Sewage

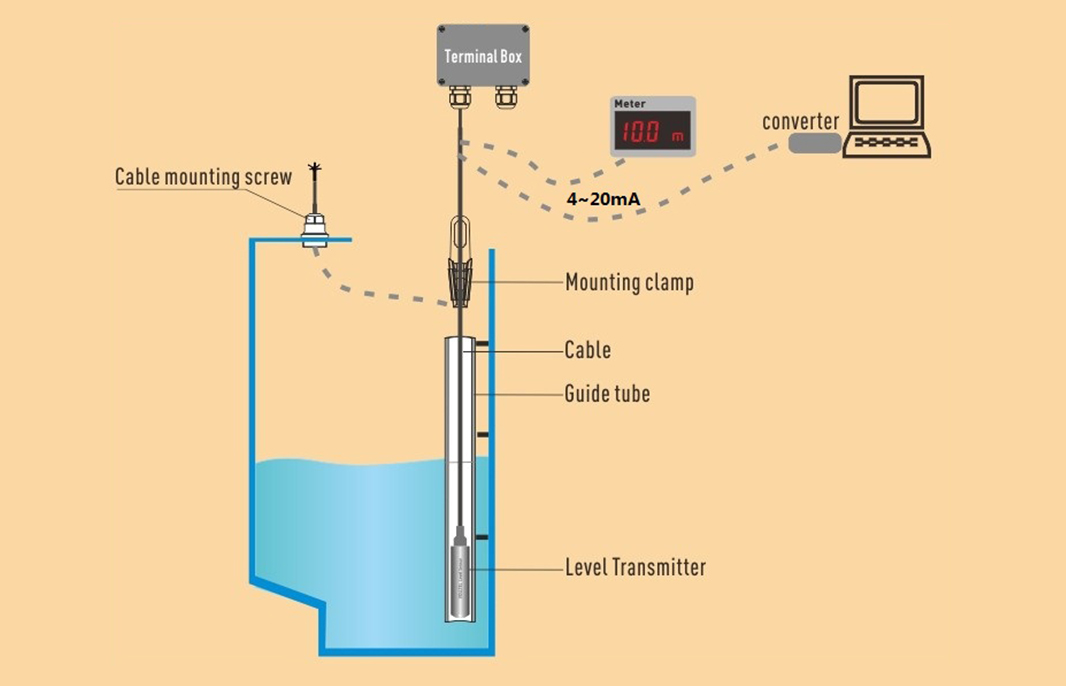

Applications:

• Water tank level measurement and control.
 • Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
 • Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
 • Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

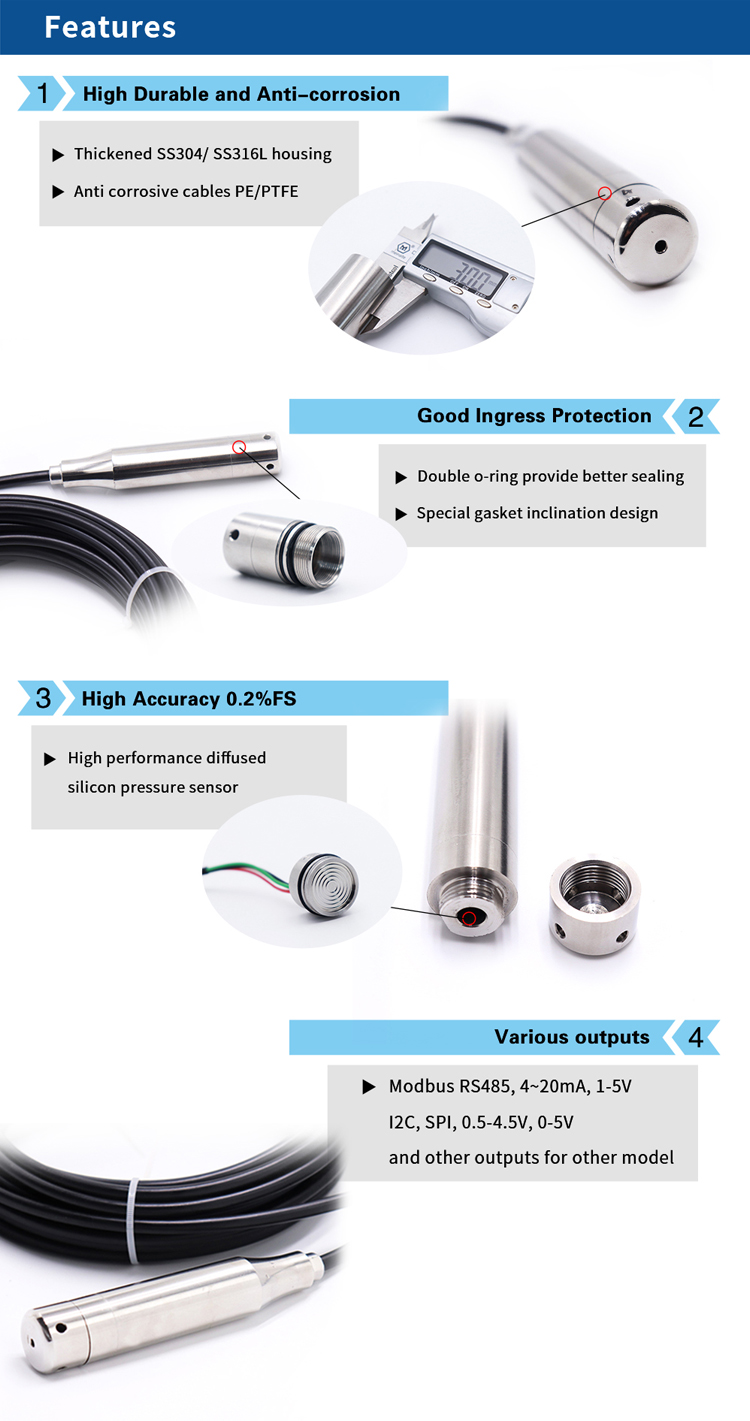

Features:

• Adopting diffusion silicon oil-filled sensor
 • Max measure range up to 200 meters or more
 • High Stability, provide 0.1, 0.2, 0.5 accuracy for option
 • Factory direct price

Specification

Output	4~20mA, 0-10mA, 0-5V, 1-5V, customization
Level range	0-0.5~200mH2O
Overload	150% of sensor range
Measuring medium	Liquid
Accuracy	±0.2%FS, ±0.5%FS
Stability	0.25%FS/ year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power Supply	24VDC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

Customer Feedback

Product Tags:

0.5-4.5V Water Level Sensor

4-20ma Water Level Sensor

River Sewage Submersible Level Transmitter

4-20ma 0.5-4.5V Water Level Sensor Submersible For River Sewage Images
